Grundfos CR3-9 K-FGJ-A-E-HQQE 3X230/460 60 HZ

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). View other configurations.

$2,097.16
Effective May 5th, 2025 Grundfos has added a 5% surcharge for all products. The surcharge will appear as a separate line item on the order.
Part Numbers
  • CR3-9 K-FGJ-A-E-HQQE 3X230/460 60 HZ
  • 99968250
  • CR 3-9 K-FGJ-A-E-HQQE
Highlights...
  • CR3-9 K-FGJ-A-E-HQQE 3X230/460 60 HZ
  • By Grundfos
  • Call for Availability

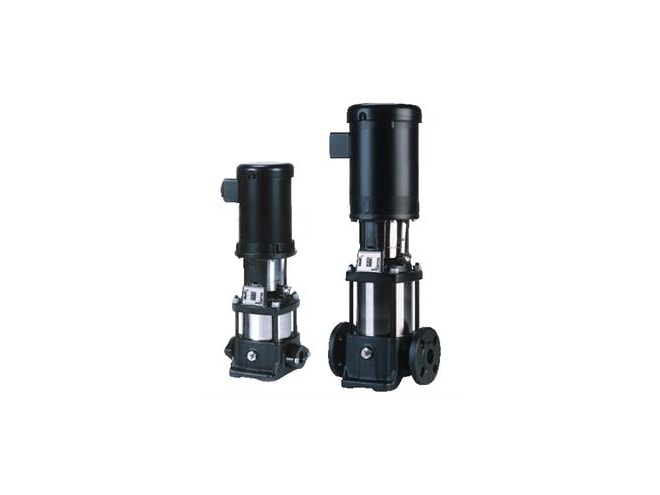

Vertical, multistage centrifugal pump with suction and discharge ports on the same level. The pump head and base are in cast iron. All other wetted parts are in stainless steel (EN 1.4301)(AISI 304)

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A special "Low NPSH" first-stage design reduces the pump's NPSHr value. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined DIN-ANSI-JIS flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.
